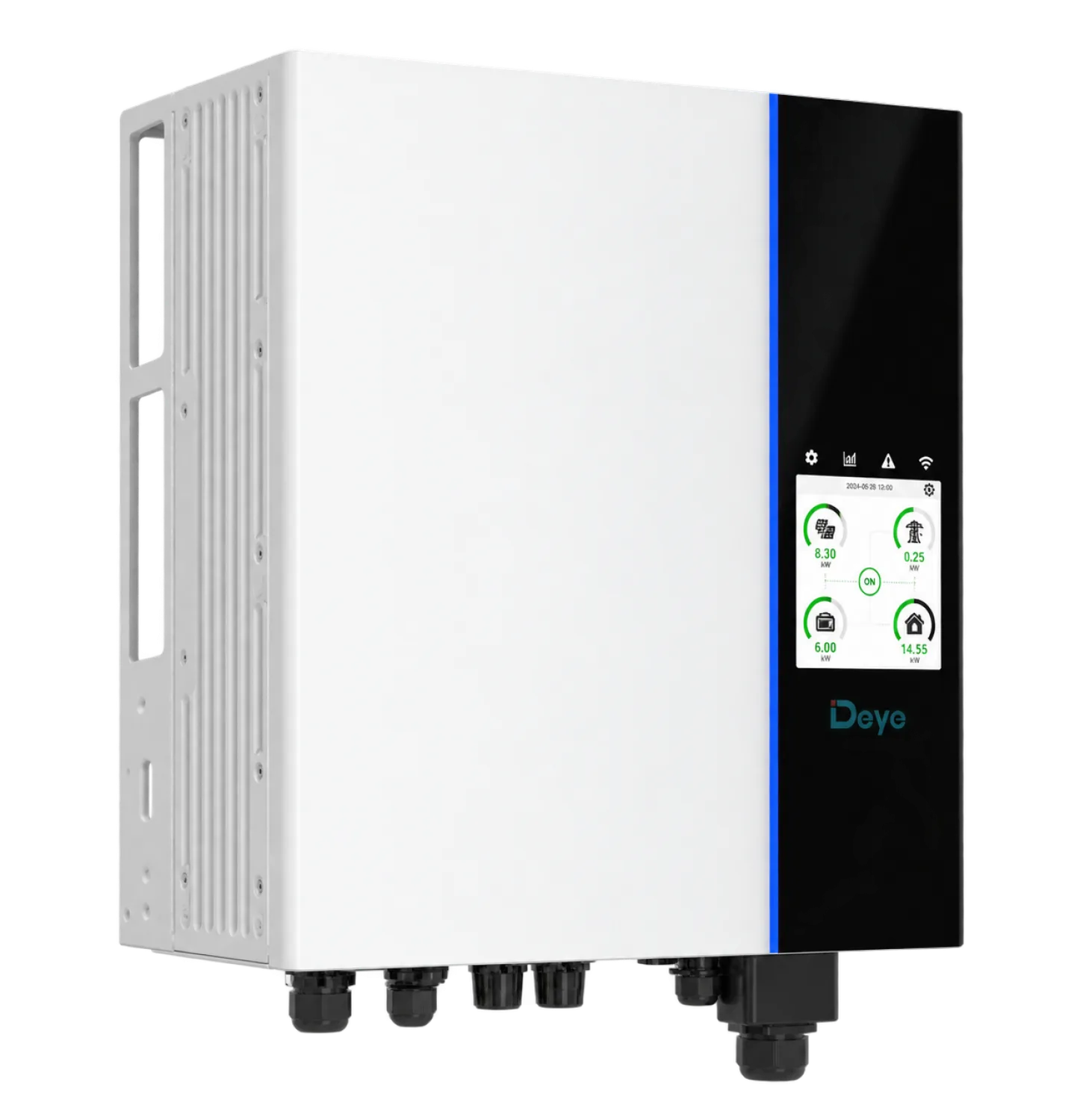

Deye GB-S10K-EU three-phase hybrid inverter 10 kW
Product Code: ID19
€1,098.00
incl. VAT
Three-phase 10 kW hybrid inverter Deye GB-S10K-EU with dual MPPT trackers and 160–700 V high-voltage battery support, designed for solar power systems with energy storage and uninterruptible backup power.
On order
Description
The three-phase Deye GB-S10K-EU is a 10 kW hybrid solar inverter designed to operate with high-voltage lithium-ion energy storage systems. The unit features an integrated UPS function, 13 kW maximum DC input power, IP65 protection rating, and natural passive cooling, making it suitable for residential and commercial power supply.
Main features
- 10 kW rated AC output and backup UPS power
- 13000 W maximum PV solar module power
- Supports 160–700 V high-voltage lithium-ion batteries
- Maximum 30 A battery charge and discharge current
- 2 MPPT trackers (2+1 strings) with a 150–850 V voltage range
- Maximum efficiency of 97.6% and European efficiency of 97.0%
- IP65 protection rating for indoor or outdoor installation
- CAN and RS485 communication interfaces for BMS battery management system connection
- 5-year manufacturer warranty
The inverter supports unbalanced three-phase loads and can operate both on-grid and in fully off-grid mode.
Specifications
- Warranty: 5 yrs
- AC grid: Three-phase
- MPPT voltage range: 150-850
- Grid: Three-phase
- AC frequency: 50 / 60
- Type: Hybrid
- Manufacturer: Deye
- Model: GB-S10K-EU
- Efficiency: 97.6
- MPPT voltage range: 150-850
- Maximum DC voltage: 1000
- Frequency: 50 / 60
- Battery current: 30
- Start-up voltage: 150
- Communication: CAN, RS485
- Nominal AC power: 10000
- Nominal AC voltage: 220/380, 230/400
- Maximum AC power: 11000
- Maximum PV voltage: 1000
- Nominal AC power: 10000
- Battery type: Li-ion
- Maximum PV current: 26+20
- Euro efficiency: 97.0
- Type: Hibridiniai inverteriai
- Power: 10 kW
- Rated power: 10000
- Maximum AC power: 11000
- Backup power supply: Yes
- Phase: 3 phases
- Maximum DC voltage: 1000
- Phases: 3 fazės
- Communication: CAN, RS485
- Warranty: 5 years
- Operating temperature: -40~60
- Dimensions: 540 x 385 x 450
- Noise level: < 30 dB
- Protection Class (IP): IP65
- Number of MPPTs: 2
- Maximum efficiency: 97.6
- Battery voltage: 160-700
- Cooling: Passive
- Connectivity: CAN, RS485
- Power: 10000
- Euro efficiency: 97.0
- Maximum PV input power: 13000
- Off-grid operation: Taip
- Nominal AC current: 15.2 / 14.5
- MPPT efficiency: 99.9
- Nominal PV voltage: 600
- Grid connection: 3L/N/PE
- Grid frequency: 50 / 60
- Nominal power: 10000
- Maximum Isc current: 39+30
- Nominal power: 10000
- European efficiency: 97.0
- Strings per MPPT: 2+1
- Power factor: 0.8-0.8
- Rated DC voltage: 600
- Efficiency: 97.6
- Maximum efficiency: 97.6
- Battery voltage: 160-700
- Maximum PV power: 13000
- Maximum short-circuit current: 39+30
- Maximum PV input power: 13000
- European efficiency: 97.0
- Number of MPPTs: 2
- Backup power: Yes
- Nominal AC voltage: 220/380, 230/400
- Maximum charge / discharge current: 30
- Battery voltage range: 160-700
- Maximum PV short-circuit current: 39+30
